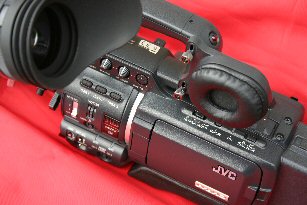

JVC GY-HD110 / GY-HD111
Compact camcorder, offering both DV and HDV recording, designed to be used on the shoulder, yet light enough and small enough for easy handheld shooting. A truly professional camcorder with features such as interchangeable lenses, mechanical stops on the zoom, focus & iris controls, twin XLRs and camera set-up positions memorised on transferable SD memory card. Model GY-HD110E has DV and HDV output only & the GY-HD111E has DV and HDV Input & Output. The standard package includes camcorder, viewfinder, 16x zoom lens, AC adapter / charger and battery. This camcorder belongs to ProHD, the name given by JVC to their range of progressive HD products for professional HD systems. (Tripod Plate is an optional extra)
|
|
Main Features:
|
|
|
Additional
Features:
|
Specifications
| Image pickup device: | 1/3" inch interline-transfer CCD x 3 |
|---|---|
| Optical system: |
Colour separation system: F1.4, 3-colour optical separation prism ND filter: 1/4ND, +1/16ND |
| No of pixels: | Total: Approx 1,110,000 pixels |
| Colour system: | Colour bars: EBU & SMPTE |
| Sync system: | Internal sync via built-in SSG |
| Lens mount: |
1/3" bayonet system |
| Sensitivity: | F8, 2000 lx |
| Gain: | 0, 3, 6, 9, 12, 15, 18 dB, ALC |
| Shutter speeds: |
Electronic Shutter: Standard value: 50 Hz Fixed values: 6.25 - 10,000 Hz, 11 steps (HDV HD25p, SD 50p, DV 50i mode) 6.25 - 10,000 Hz, 11 steps (DV 25p) |
| Variable scan: | 50.2 to 1,973.7 Hz |
| Dynamic range: | 250% or more |
| VTR SECTION: |
 |
| Recording formats: | 720p/24, 720p/25, 720p/30, 576p/50, 576p/25, 576i/50 |
| VIDEO |
HDV Video signal recording format: HDV720p format, 8-bit, 19.7 Mbps Compression: MPEG-2 video (profile & level: MP@H-14) DV Video signal recording format: DV format, 8-bit, 25 Mbps Compression: DV compression 4:2:0 |
| AUDIO: |
HDV Audio signal recording format: MPEG1 Audio Layer II DV Audio signal recording format: 16-bit (locked audio), 48 kHz PCM for 2 channels Cassette type: Mini DV Tape speed: 18.8 mm/sec. Record/play time: 63 minutes (with an M-DV63PROHD tape)  |
| CONNECTORS |
Analogue composite output: 1.0 V (p-p), 75 ohms, unbalanced (RCA) Analogue component output: Y: 1.0 V (p-p), 75 ohms, unbalanced (RCA) PB/PR: 0.7 V (p-p), 75 ohms, unbalanced (RCA) |
| Audio input: |
Mic: -60 dBs, 3 kohms, balanced (XLR), +48 V output for phantom
power supply Line: +4 dBs, 10 kohms, balanced (XLR) |
| Audio output: |
-6 dBs, low impedance, unbalanced (stereo mini-jack) Earphone jack: -17 dBs to -60dBs, 8-ohm impedance (stereo mini-jack x 2) IEEE1394 connector: 6-pin |
| Power requirement: | DC 7.2 V |
| Power consumption: | Approx 14W (in record mode) |
| Dimensions (WxHxD): | 235mm (W) x 232mm (H) x 315mm (D) |
| Weight: | 3.1 kg (including: T16x5.5BRMU lens, viewfinder, battery, microphone and tape cassette) |
| Operating Temperature: |
0°C to 40°C Storage: -20°C to 60°C |
| Operating Humidity: |
30% to 80% RH Storage: 85% RH or less |
| ACCESSORIES (Supplied) |
AC Adapter / Battery Charger AA-P30U(E) Battery BN-V428, 7.2V, 2.8A/h x 1 Zoom Lens Th16x5.5BRM Microphone MV-P619U & Mic Holder Viewfinder 0.44" SD Memory Card (Camera set-ups)  |
| ACCESSORIES (Optional) |
BN-V438U Battery L-ion, 7.2V, 3.8A/h ACM-12 Mount converter, 1/3" to 1/2" WCV-82SC Wide angle converter, 82mm Th13X3.5BRMU Fujinon 13x w/angle, 3.8 - 49.4mm DR-HD100-40 Hard disk recorder, 40GB capacity KA-551U Tripod plate TBA Tripod Wedge Adaptor only |
| Trademark notice: | "HDV" and "HDV" logo are trademarks of Sony Corporation and Victor Company of Japan, Limited (JVC) |
Discontinued
