JVC

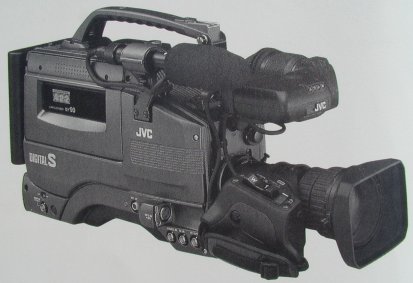

DY-90E 4:3 / DY-90WE 16:9/4:3
• Light weight 7.2 kilograms (DV-9OWE) and
6.9 kilograms (DV-90E) including typical lens, viewfinder, battery and tape
• Only 30 watts power requirement while recording with DV-9OWE (29 W with DY-90E)
• Fully digital Camera to Tape parallel digital signal recording, rugged and high
quality 50 Mbps, 8-bit, 4:2:2 component D-9 format
• 2-hour (124 minutes) D-9 recording time with DS-124 cassette
• Advanced generation 14-bit digital signal camera processing
• Records four 16-bit 48 kHz PCM audio channels with more than 80dB dynamic range
(75dB in camcorder playback).

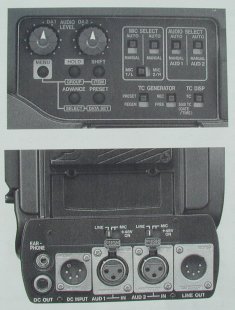

• Both +48 V XLR and 6-pin camera microphone inputs, plus 2 additional +48 V midline
XLR inputs
Imaging
• Three 2/3" 980H x 685V pixel IT CCDs
(DY-90WE) and three 2/3" 745H x 581V pixel IT CCDs with total 600% dynamic range
reproduction due to exclusive track and hold CCD
sampling circuit. Low CCD vertical smear level of minus 120dB
• High sensitivity of Fl 1 at 2000 lux gives creative flexibility and ease of
lighting
• Lolux mode provides outstanding reproduction down to 0.75 lux
• Digital signal processing enables natural detail enhancement, and elimination of
spot noise.
• 14-bit DSP processing gives exceptional reproduction of dark areas, highlights and
highlight colour.
• Automatic shooting from 4 to 24,000 lux thanks to JVC’s pioneering Full Auto
Shooting (FAS) mode with continuous automatic white balance.
•Two scene files save advanced custom camera setups in removable setup box in
addition to standard setup.
• Other features: One touch black stretch/compress, smooth transition mode, precision
"Accufocus" mode, adjustable gamma point, adjustable detail frequency, and
continuous auto-black (CAB).
D-9 Recording
• Up to 124 minutes uninterrupted recording with
DS-124 cassette.
• Robust 1/2 inch metal particle cassettes
• Automatic editing function (AEF) for smooth cuts
• 4x picture search in both directions
• Quick review function
• Colour video playback for monitoring
• Phantom power supply for microphone inputs
• Built-in monitor speaker and headphones jack
• EBU time code generator with external input and output, external lock, jam sync and
seamless time code between takes.
• Time date generator
• Large LCD display indicates time code, modes and functions
• Fully menu configurable
• Tape/Battery remaining indication
• Rugged die cast chassis using ceramic tape guide rollers and sapphire flanges for
long life
• Durable and reliable centre rotating head design

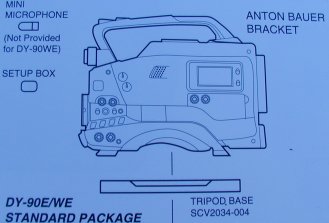

Included Accessories
Lens (not included with DY-90WE)
Viewfinder
Tripod Plate
6-pin camera microphone (not included with DY-90WE)
Setup box
Optional Accessories
Microphone
Microphone holder
Power system
Case
DY-90E
Discontinued
DY-90WE 16:9/4:3 (Without Lens)
Discontinued
