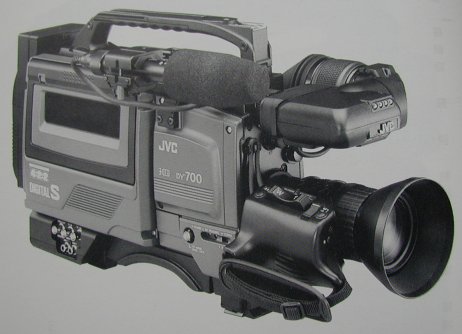

JVC
DY-700E
• Most economical 4:2:2 camcorder in the
world
• Professional and practical, rugged and high quality 60Mbps, 8-bit, 4:2:2 component
D-9 recording
• 8.5 kilograms including typical lens, viewfinder, battery and tape
• 34 watts power requirement while recording
• Viewfinder status overlay for essential information such as audio levels, remaining
recording time and battery information such as voltage, VTR operation, and set-up.
Imaging
• Three 1/2" 440K pixel IT micro lens CCDs
with virtually no vertical CCD smear.
• High sensitivity of F8 at 2000 lux
• Quick recording mode sets automatic shooting for level control via both variable
gain and variable shutter
• Lolux mode provides excellent colour balance down to 1.5 lux at F1.4.
• Horizontal resolution is 750 TV lines.
• 60 dB signal to noise ratio
• Variable Scan View captures flicker-free images from computer and monitor CRTs,
even if the scan rate differs from the camcorder frame rate.
• Continuous Auto Black samples the CCD’s optical black for perfect black
balance without interrupting shooting
D-9
Recording
• Up to 124 minutes uninterrupted recording
• Two 16-bit 48 kHz PCM audio channels
• Robust 1/2 inch metal particle cassettes
• Automatic editing function (AEF) for smooth cuts
• l0x picture search in both directions
• Quick review function
• Colour video playback
• Phantom power supply for microphone inputs
• Built-in monitor speaker and earphone jack
• Analogue composite video and audio output
• EBU time code generator with external input and output, external lock, jam sync and
seamless time code between takes.
• Large LCD display indicates time code, modes and functions
• Fully menu configurable
• Tape/Battery remaining indication
• Rugged die cast chassis using ceramic tape guide rollers and sapphire flanges for
long life
• Centre rotating head design for long head life
Included Accessories
Tripod plate
Camera microphone (6-pin)
Battery holder (NP-l or NB-G1)
Viewfinder
Lens
Optional Accessories
Other microphones
Microphone holder
Power system
Case
Discontinued
